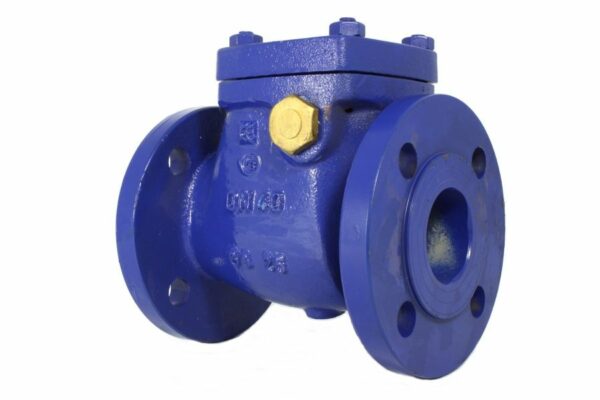

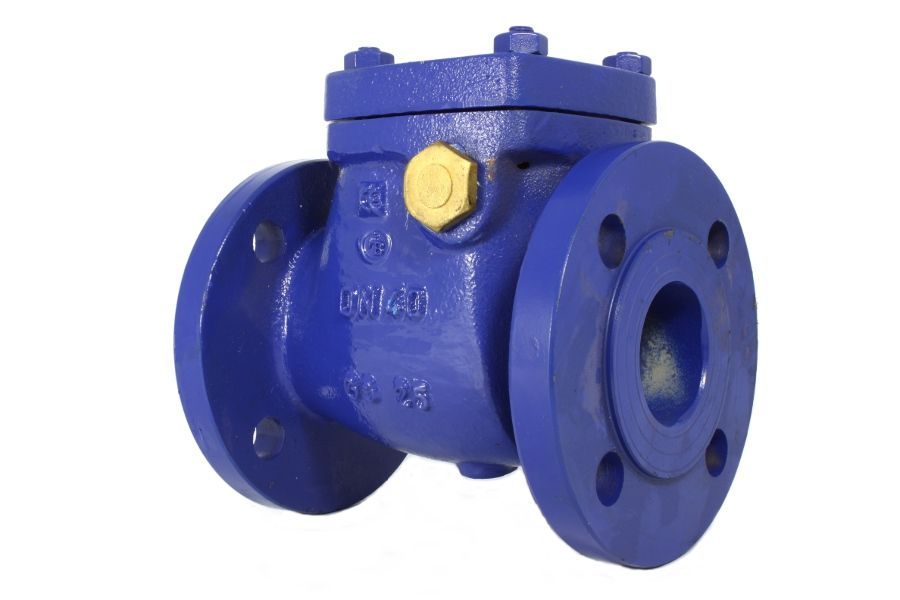

Flanged Swing Check Valve, 04-002
Additional information
| Connection Type | Ähnl. DIN 3232-A, Length acc. to DIN 3202-F6 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 120°C |
| Application Range | Cold water, Neutral gases, Steam, Warm water |
- Inside shaft
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 04-002-40 | DN40 | PN16 | 180 | 119 | 150 | 9.00 |
| 04-002-50 | DN50 | PN16 | 200 | 120 | 165 | 11.00 |
| 04-002-65 | DN65 | PN16 | 240 | 141 | 185 | 15.20 |
| 04-002-80 | DN80 | PN16 | 260 | 168 | 200 | 20.80 |
| 04-002-100 | DN100 | PN16 | 300 | 175 | 220 | 31.50 |
| 04-002-125 | DN125 | PN16 | 350 | 199 | 250 | 46.00 |
| 04-002-150 | DN150 | PN16 | 400 | 217 | 285 | 60.00 |
| 04-002-200 | DN200 | PN16 | 500 | 277 | 340 | 120.00 |
| 04-002-250 | DN250 | PN16 | 600 | 337 | 405 | 180.00 |
| 04-002-300 | DN300 | PN16 | 700 | 374 | 460 | 250.00 |
