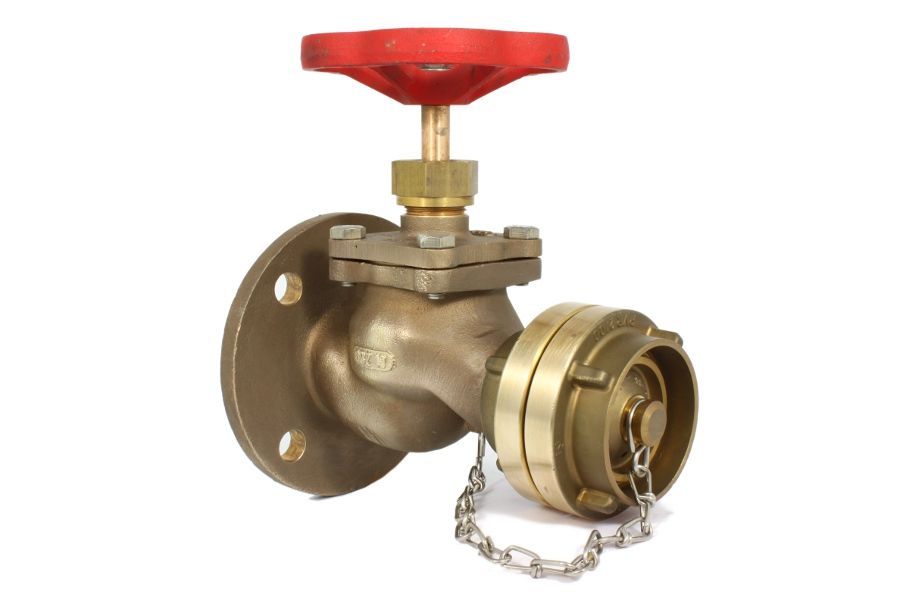

Fire Globe Valve (Hose Connection Valve), 06-002
SKU:
06-002
Category: Fire Valves
Additional information
Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
---|---|
Material Body | Zincfree bronze |
Inner Parts | Bronze |
Seat Sealing | NBR |
Temperature Range | -10°C to 80°C |
- Screw lock disc
- Storz fix- and blind-coupling
- LR type approval
Art. Nr. | DN | PN | L | H | ØD | kg |
06-002-50-40 | DN50 | PN16 | 222 | 175 | 140 | 8.00 |
06-002-50-50 | DN50 | PN16 | 222 | 175 | 140 | 8.20 |
06-002-65 | DN65 | PN16 | 260 | 205 | 160 | 12.40 |
