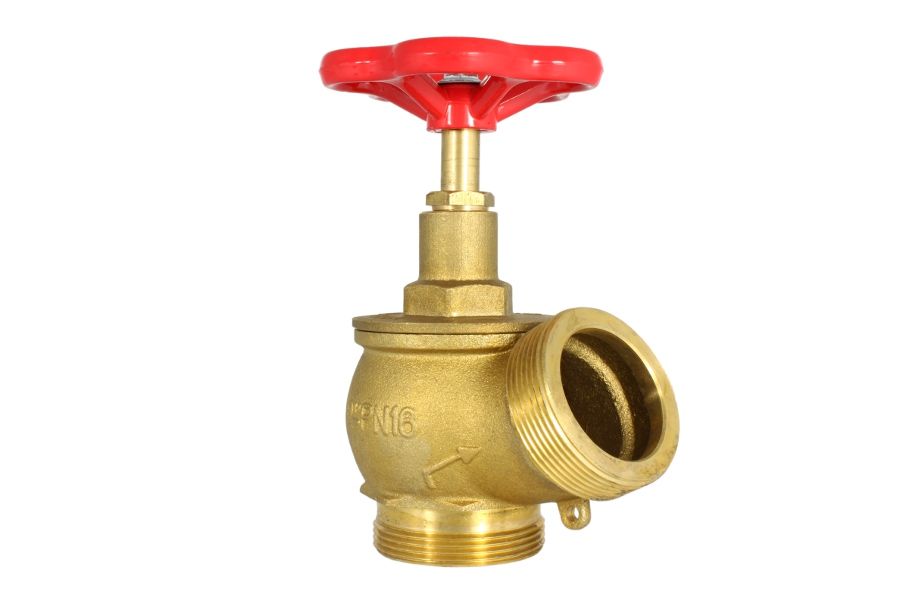

Fire Globe Valve 30° (Hose Connection Valve), 06-005-30
Additional information
| Connection Type | Male thread acc. to ISO 228/1 |
|---|---|
| Material Body | Brass |
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
- Screwed bonnet
- With 30°-outlet
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 06-005-30-25 | DN25 | PN16 | 63 | 145 | 60 | 0.70 |
| 06-005-30-32 | DN32 | PN16 | 65 | 160 | 80 | 1.50 |
| 06-005-30-40 | DN40 | PN16 | 80 | 190 | 80 | 2.10 |
| 06-005-30-50 | DN50 | PN16 | 100 | 200 | 100 | 2.80 |
| 06-005-30-65 | DN65 | PN16 | 105 | 240 | 120 | 3.30 |
| 06-005-30-80 | DN80 | PN16 | 135 | 275 | 160 | 5.90 |
| 06-005-30-100 | DN100 | PN16 | 160 | 310 | 160 | 9.10 |
