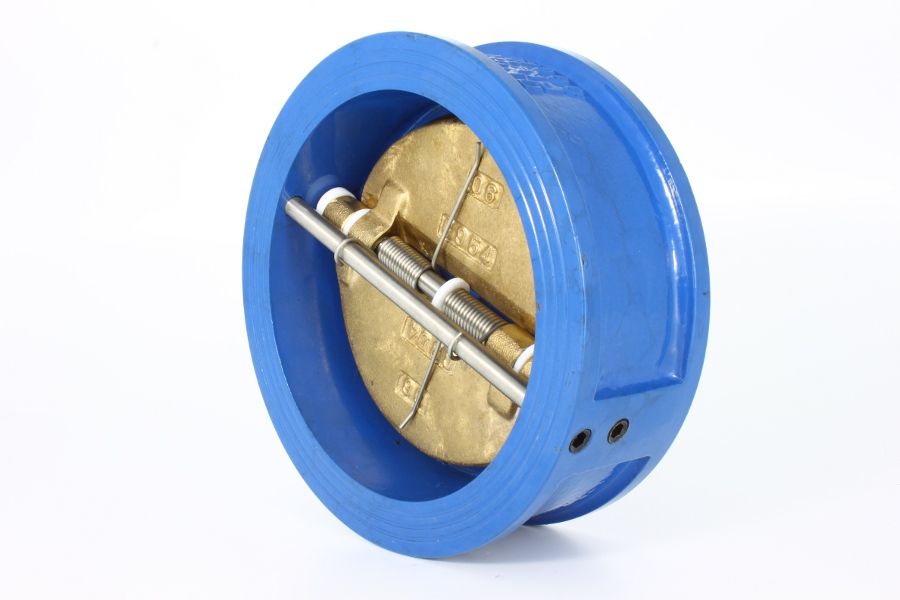

Double Swing Check Valves, 04-232
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
- For horizontal and vertical pipelines
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-232-50 | DN50 | PN10 | 43 | 65 | 1.50 |
| 04-232-65 | DN65 | PN10 | 46 | 80 | 2.40 |
| 04-232-80 | DN80 | PN10 | 64 | 94 | 3.60 |
| 04-232-100 | DN100 | PN10 | 64 | 117 | 5.70 |
| 04-232-125 | DN125 | PN10 | 70 | 145 | 7.30 |
| 04-232-150 | DN150 | PN10 | 76 | 170 | 9.00 |
| 04-232-200 | DN200 | PN10 | 89 | 224 | 17.00 |
| 04-232-250 | DN250 | PN10 | 114 | 265 | 26.00 |
| 04-232-300 | DN300 | PN10 | 114 | 310 | 42.00 |
| 04-232-350 | DN350 | PN10 | 127 | 360 | 55.00 |
| 04-232-400 | DN400 | PN10 | 140 | 410 | 75.00 |
| 04-232-450 | DN450 | PN10 | 152 | 450 | 101.00 |
| 04-232-500 | DN500 | PN10 | 152 | 505 | 111.00 |
| 04-232-600 | DN600 | PN10 | 178 | 624 | 172.00 |
