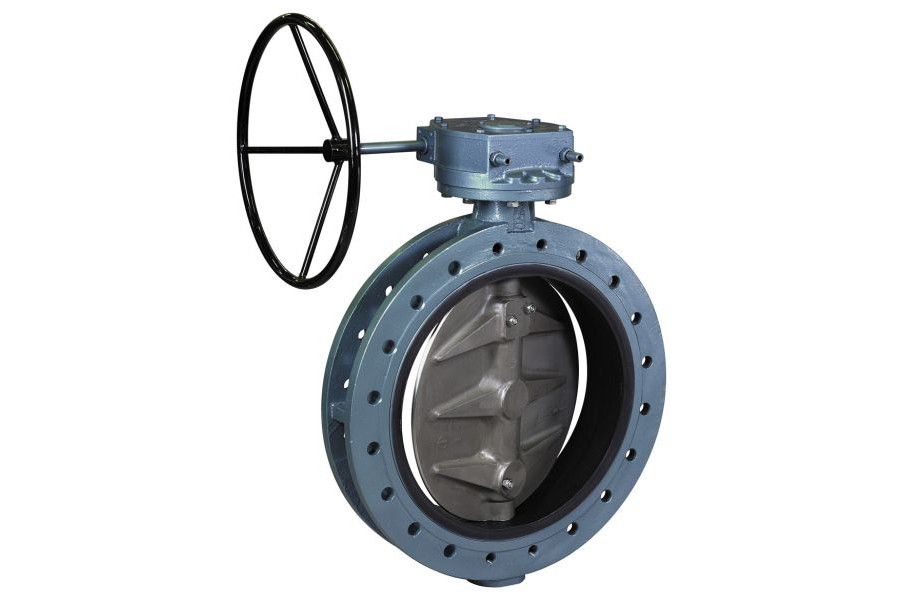

Double Flanged Butterfly Valve, 04-030N-K1
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-030N-K1-150 | DN150 | PN6 | 56 | 305 | 22.00 |
| 04-030N-K1-200 | DN200 | PN6 | 60 | 350 | 32.00 |
| 04-030N-K1-250 | DN250 | PN6 | 68 | 430 | 47.00 |
| 04-030N-K1-300 | DN300 | PN6 | 78 | 480 | 69.00 |
| 04-030N-K1-350 | DN350 | PN6 | 92 | 540 | 86.00 |
| 04-030N-K1-400 | DN400 | PN6 | 102 | 605 | 128.00 |
| 04-030N-K1-450 | DN450 | PN6 | 114 | 675 | 150.00 |
| 04-030N-K1-500 | DN500 | PN6 | 127 | 710 | 170.00 |
| 04-030N-K1-600 | DN600 | PN6 | 154 | 830 | 260.00 |
| 04-030N-K1-700 | DN700 | PN6 | 165 | 905 | 345.00 |
| 04-030N-K1-750 | DN750 | PN6 | 190 | 965 | 470.00 |
| 04-030N-K1-800 | DN800 | PN6 | 190 | 1020 | 466.00 |
| 04-030N-K1-900 | DN900 | PN6 | 203 | 1120 | 610.00 |
| 04-030N-K1-1000 | DN1000 | PN6 | 216 | 1020 | 722.00 |
