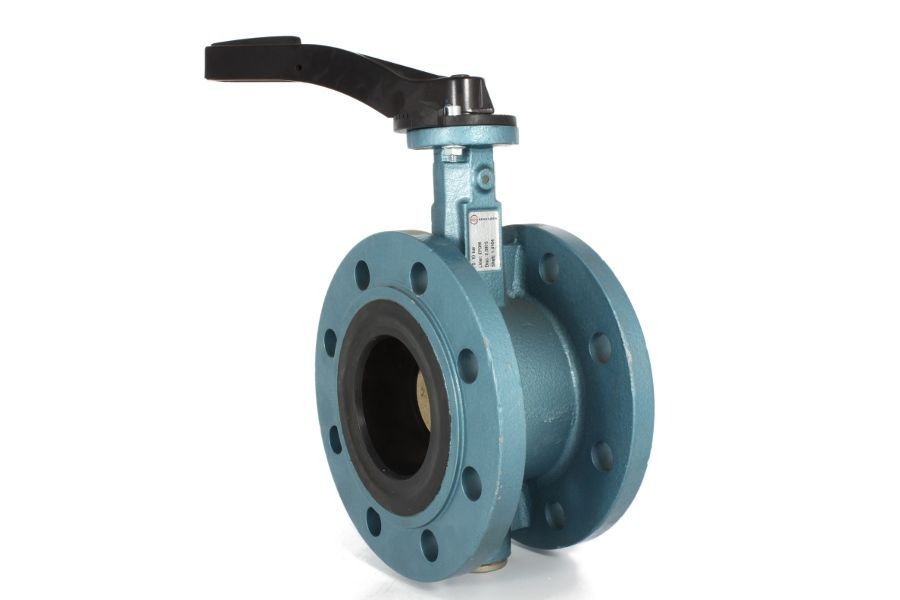

Double Flanged Butterfly Valve, 04-028N-F4
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-028N-F4-65 | DN65 | PN10 | 200 | 196 | 185 | 16.00 |
| 04-028N-F4-80 | DN80 | PN10 | 200 | 204 | 200 | 19.00 |
| 04-028N-F4-100 | DN100 | PN10 | 200 | 237 | 220 | 21.00 |
| 04-028N-F4-125 | DN125 | PN10 | 300 | 247 | 250 | 29.50 |
| 04-028N-F4-150 | DN150 | PN10 | 450 | 260 | 285 | 31.50 |
| 04-028N-F4-200 | DN200 | PN10 | 450 | 303 | 340 | 42.50 |
