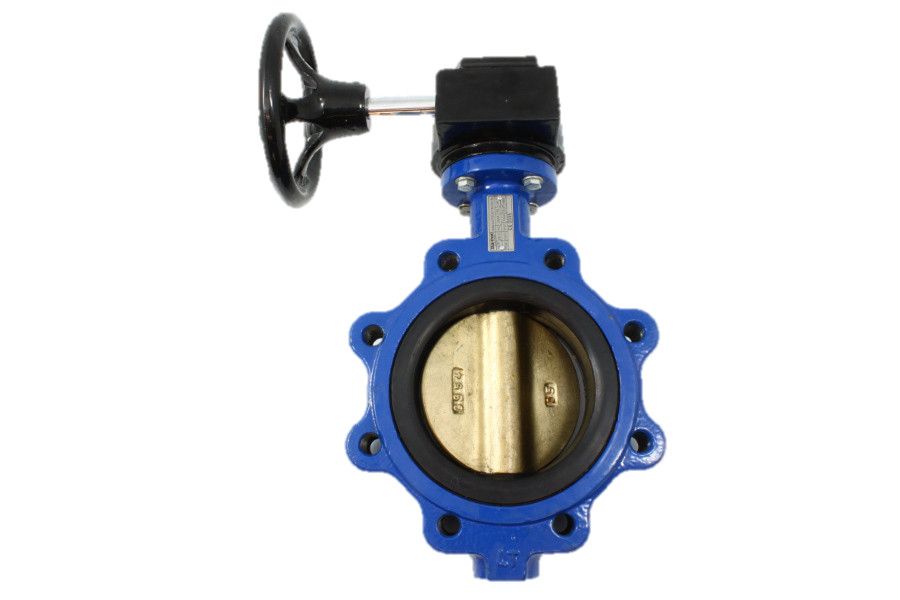

Butterfly Valve Lug Type, 04-023N
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-023N-20 | DN20 | PN10 | 33 | 193 | 63 | 4.00 |
| 04-023N-25 | DN25 | PN10 | 33 | 193 | 63 | 4.00 |
| 04-023N-32 | DN32 | PN10 | 33 | 193 | 68 | 4.00 |
| 04-023N-40 | DN40 | PN10 | 33 | 202 | 80 | 5.90 |
| 04-023N-50 | DN50 | PN10 | 43 | 215 | 95 | 6.70 |
| 04-023N-65 | DN65 | PN10 | 46 | 223 | 115 | 7.40 |
| 04-023N-80 | DN80 | PN10 | 46 | 246 | 138 | 10.00 |
| 04-023N-100 | DN100 | PN10 | 52 | 256 | 158 | 11.20 |
| 04-023N-125 | DN125 | PN10 | 56 | 269 | 188 | 11.50 |
| 04-023N-150 | DN150 | PN10 | 56 | 322 | 210 | 15.40 |
| 04-023N-200 | DN200 | PN10 | 60 | 357 | 268 | 21.10 |
| 04-023N-250 | DN250 | PN10 | 68 | 395 | 320 | 32.30 |
| 04-023N-300 | DN300 | PN10 | 78 | 449 | 370 | 43.30 |
| 04-023N-350 | DN350 | PN10 | 78 | 490 | 408 | 61.10 |
