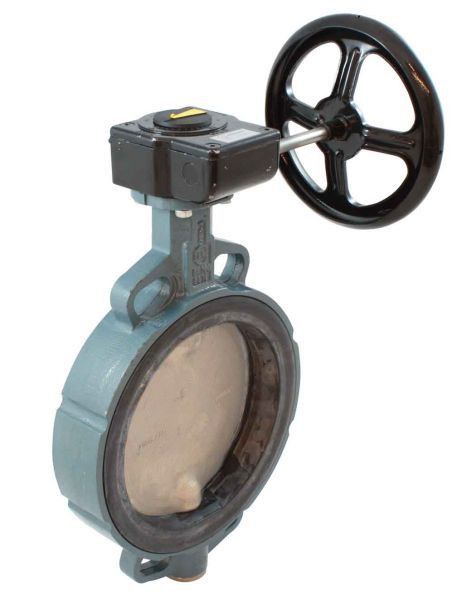

Butterfly Valve Wafer Type, 04-063NC
Additional information
| Connection Type | Suitable for flanges acc. to DIN/JIS/ANSI |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Lubrication oil, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | ØD | Kg |
| 04-063NC-50 | DN50 | PN10 | 76.3 | 11.80 |
| 04-063NC-65 | DN65 | PN10 | 89 | 12.20 |
| 04-063NC-80 | DN80 | PN10 | 104 | 12.70 |
| 04-063NC-100 | DN100 | PN10 | 135 | 15.00 |
| 04-063NC-125 | DN125 | PN10 | 159 | 16.10 |
| 04-063NC-150 | DN150 | PN10 | 188,4 | 18.10 |
| 04-063NC-200 | DN200 | PN10 | 238,3 | 23.40 |
| 04-063NC-250 | DN250 | PN10 | 292,5 | 20.50 |
| 04-063NC-300 | DN300 | PN10 | 344,2 | 36.20 |
| 04-063NC-350 | DN350 | PN10 | 375 | 67.00 |
| 04-063NC-400 | DN400 | PN10 | 99.00 | |
| 04-063NC-450 | DN450 | PN10 | 123.00 | |
| 04-063NC-500 | DN500 | PN10 | 149.00 | |
| 04-063NC-600 | DN600 | PN10 | 266.00 |
