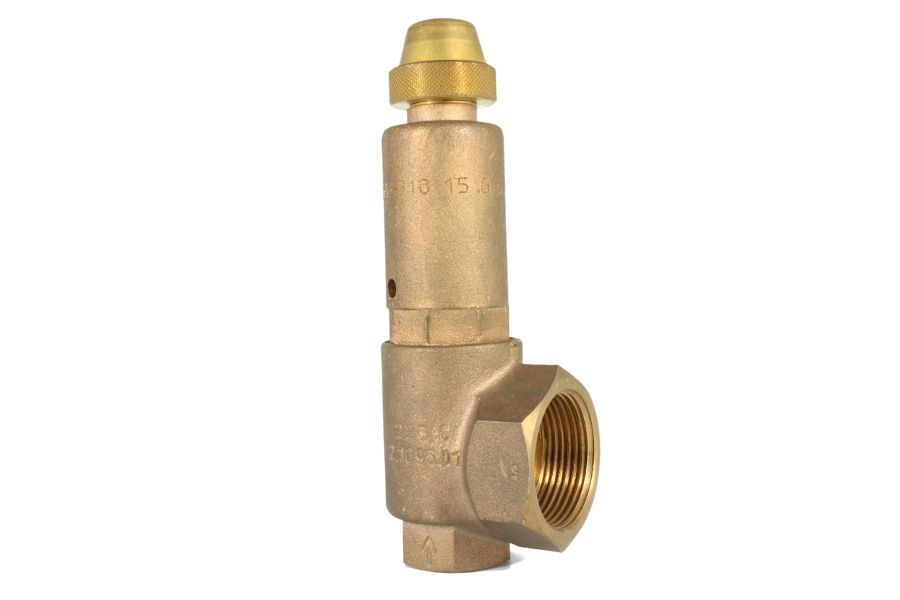

Threaded Safety Valve, 05-008
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 140°C |
- Type approval
- Enlarged outlet
- Closed bonnet, lifting device
- Adjustment range 0,5 – 25 bar
| Art. Nr. | DN | L | H | kg |
| 05-008-1/2 | G1/2 | 34 | 26 | 0.40 |
| 05-008-3/4- | G3/4 | 41 | 36 | 1.00 |
| 05-008-1 | G1 | 48 | 43 | 1.80 |
| 05-008-11/4 | G1-1/4 | 64 | 53 | 4.00 |
