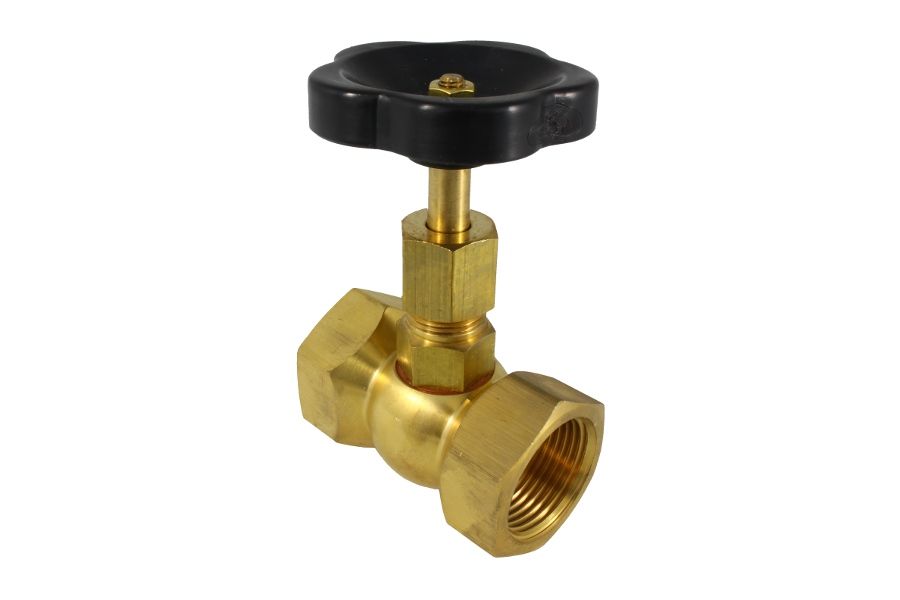

Threaded Needle Valve, 01-025
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Brass |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | 0°C to 110°C |
- Internal threaded spindle
- Screwed bonnet
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-025-1/8 | G1/8 | PN100 | 50 | 70 | 50 | 0.30 |
| 01-025-1/4 | G1/4 | PN100 | 50 | 78 | 50 | 0.30 |
| 01-025-3/8 | G3/8 | PN100 | 50 | 78 | 50 | 0.30 |
| 01-025-1/2 | G1/2 | PN100 | 55 | 78 | 63 | 0.40 |
| 01-025-3/4 | G3/4 | PN100 | 67 | 90 | 63 | 0.50 |
| 01-025-1 | G1 | PN100 | 75 | 95 | 63 | 0.70 |
| 01-025-11/4 | G1-1/4 | PN100 | 110 | 105 | 90 | 1.10 |
| 01-025-11/2 | G1-1/2 | PN100 | 110 | 110 | 90 | 1.40 |
| 01-025-2 | G2 | PN100 | 110 | 110 | 90 | 1.70 |
