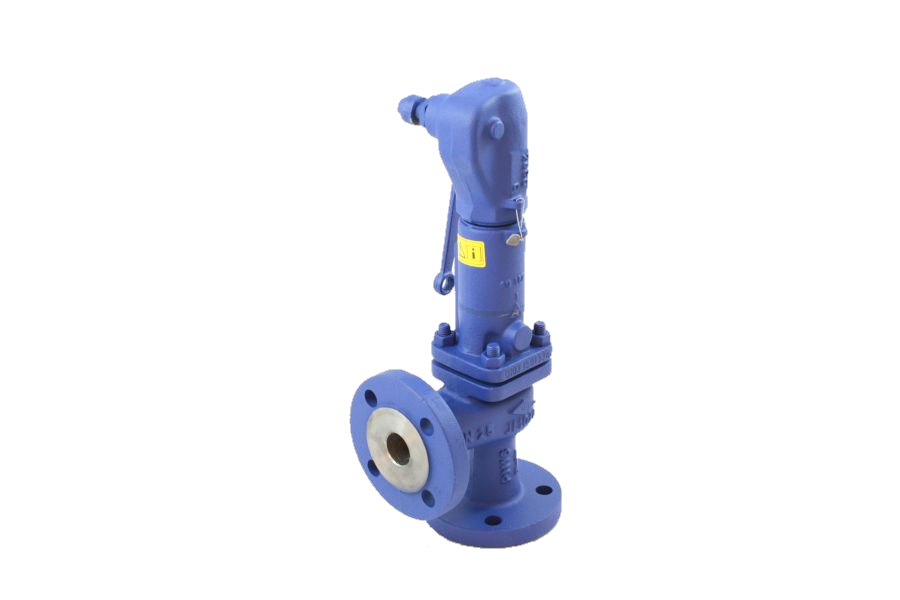

Proportional Safety Valve, Spring Loaded, 05-024GHGA
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 120°C |
- Closed bonnet
- Lifting device
| Art. Nr. | DN | PN | L | H | ØD |
| 05-024GHGA-15 | DN15 | PN16 | 90 | 170 | 95 |
| 05-024GHGA-20 | DN20 | PN16 | 95 | 180 | 105 |
| 05-024GHGA-25 | DN25 | PN16 | 100 | 190 | 115 |
| 05-024GHGA-32 | DN32 | PN16 | 105 | 200 | 140 |
| 05-024GHGA-40 | DN40 | PN16 | 115 | 280 | 150 |
| 05-024GHGA-50 | DN50 | PN16 | 125 | 290 | 165 |
| 05-024GHGA-65 | DN65 | PN16 | 145 | 300 | 185 |
| 05-024GHGA-80 | DN80 | PN16 | 155 | 350 | 200 |
| 05-024GHGA-100 | DN100 | PN16 | 175 | 450 | 220 |
| 05-024GHGA-125 | DN125 | PN16 | 200 | 460 | 250 |
| 05-024GHGA-150 | DN150 | PN16 | 225 | 500 | 285 |
