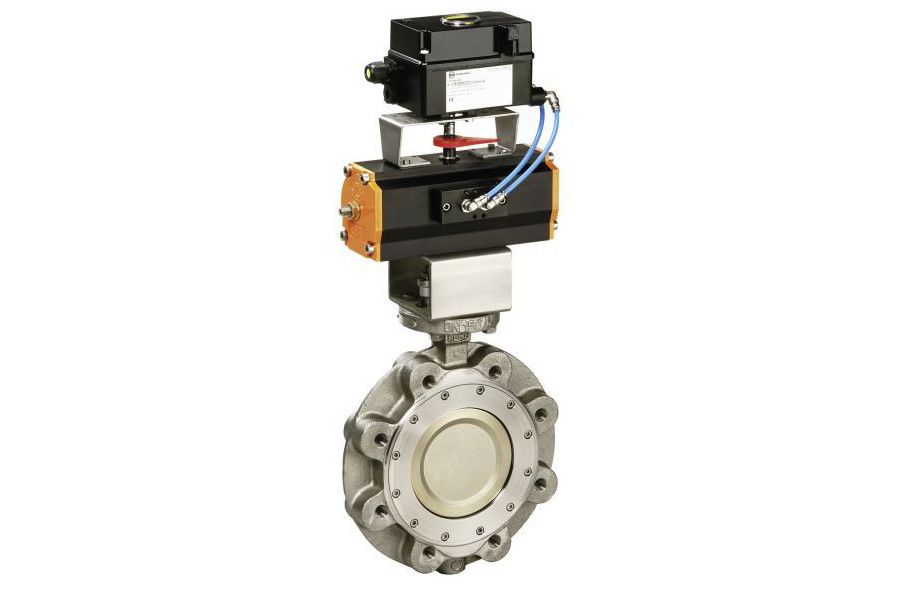

High Performance Butterfly Valve, Wafer Type, 04-076I
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/40 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Inconel |
| Temperature Range | -30°C to 450°C |
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 04-076I-50 | DN50 | PN40 | 43 | 99 | 112 | 8.80 |
| 04-076I-65 | DN65 | PN40 | 43 | 99 | 112 | 8.80 |
| 04-076I-80 | DN80 | PN40 | 46 | 113 | 138 | 13.60 |
| 04-076I-100 | DN100 | PN40 | 52 | 124 | 160 | 14.90 |
| 04-076I-125 | DN125 | PN40 | 56 | 140 | 192 | 19.90 |
| 04-076I-150 | DN150 | PN40 | 56 | 165 | 216 | 23.30 |
| 04-076I-200 | DN200 | PN40 | 60 | 191 | 270 | 39.20 |
| 04-076I-250 | DN250 | PN40 | 68 | 222 | 326 | 55.30 |
| 04-076I-300 | DN300 | PN40 | 78 | 255 | 378 | 78.60 |
| 04-076I-350 | DN350 | PN40 | 92 | 304 | 438 | 144.10 |
| 04-076I-400 | DN400 | PN40 | 102 | 339 | 488 | 151.00 |
| 04-076I-450 | DN450 | PN40 | 114 | 340 | 530 | 204.50 |
| 04-076I-500 | DN500 | PN40 | 127 | 399 | 593 | 270.50 |
| 04-076I-550 | DN550 | PN40 | 154 | 405 | 635 | 313.00 |
