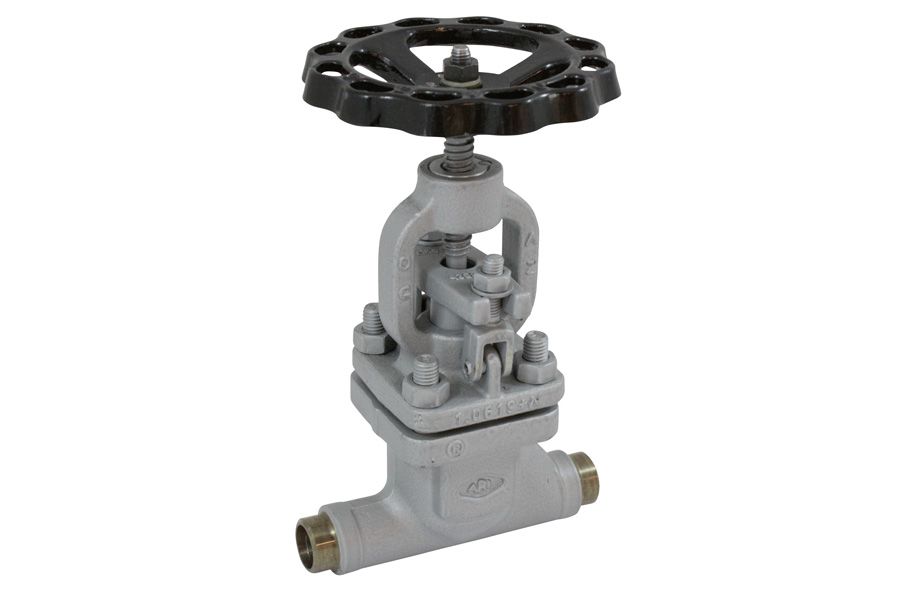

Globe Valve with Butt Weld Ends, 01-446PN160
Additional information
| Connection Type | Butt weld ends acc. to DIN EN 16267 |
|---|---|
| Material Body | Forged steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 450°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-446PN160-10 | DN10 | PN160 | 150 | 228 | 180 | 6.50 |
| 01-446PN160-15 | DN15 | PN160 | 150 | 228 | 180 | 6.50 |
| 01-446PN160-20 | DN20 | PN160 | 150 | 228 | 180 | 6.50 |
| 01-446PN160-25 | DN25 | PN160 | 160 | 228 | 180 | 6.60 |
| 01-446PN160-32 | DN32 | PN160 | 180 | 292 | 225 | 13.20 |
| 01-446PN160-40 | DN40 | PN160 | 210 | 292 | 225 | 13.20 |
| 01-446PN160-50 | DN50 | PN160 | 250 | 300 | 225 | 16.20 |
