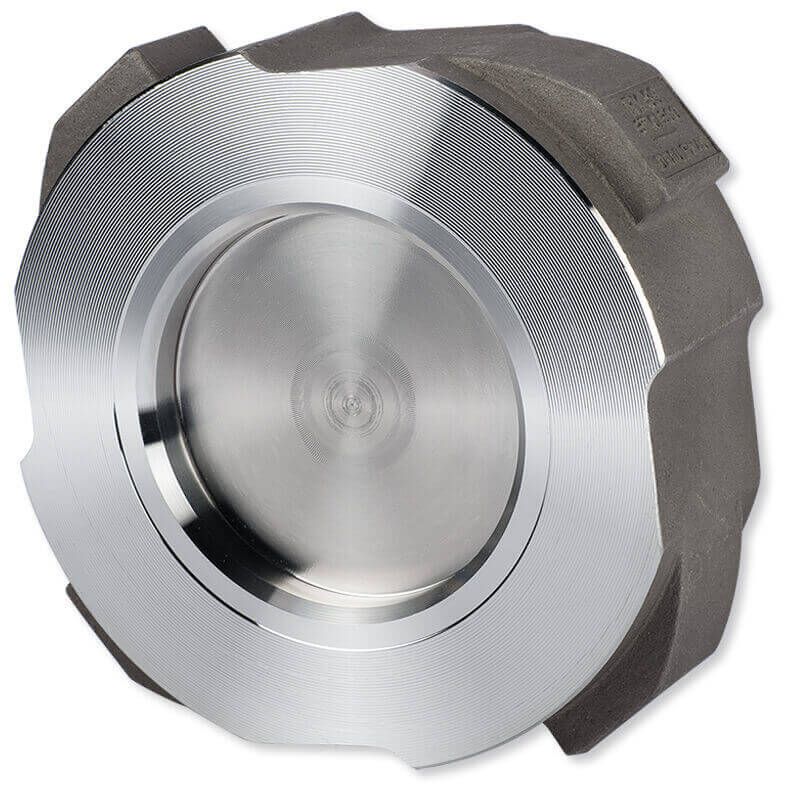

Gestra DISCO Non-Return Valve, RK86
Additional information
| Material Body | Chromium steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | EPDM, FPM, Metal to metal, PTFE, Soft sealing |
- Non-Return Valve RK 86
- Wafer design with extremely short overall length to EN 558-1
- Metal-to-metal seat or soft seat (EPDM, FPM, PTFE)
- Stronger springs for other opening pressures also available
- Self-centering valve body (DN 15 – DN 100)
Nominal size:
DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100,
DN 125, DN 150, DN200
Pressure rating:
PN 10, PN 16, PN 25, PN 40
ASME CL 125, CL 150, CL 300
Connection:
DIN/EN, BS, ASME
Materials:
Body, Seat, Guide ribs: 1.4317 Chromium steel
Disc, Spring retainer, Spring: 1.4571 Stainless steel
