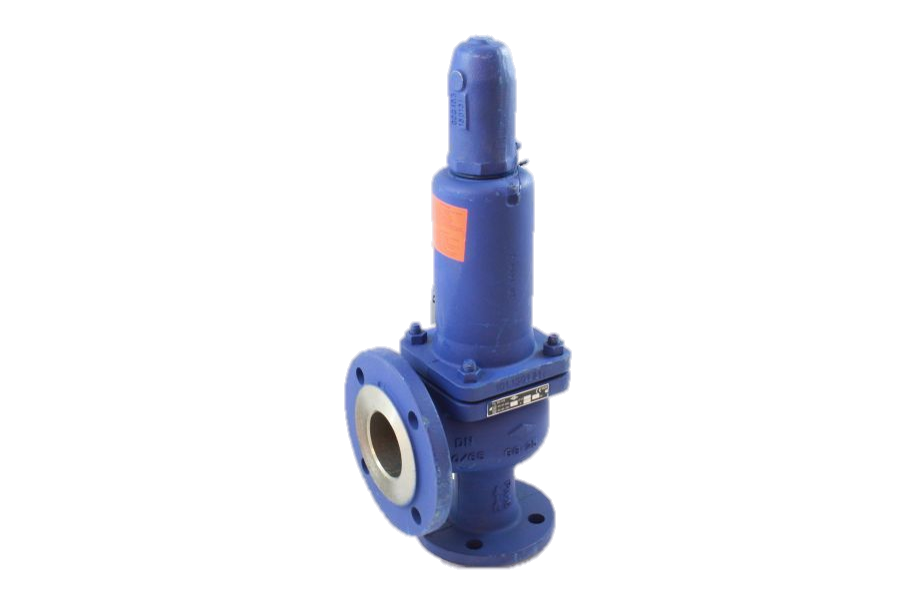

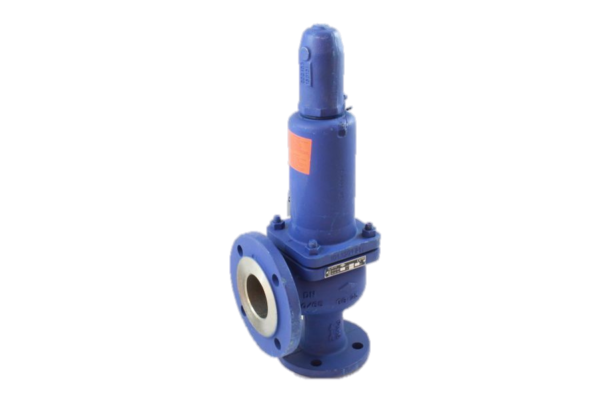

Full-Lift Safety Valve, Spring Loaded, 05-031GHGD

SKU: 05-031GHGD Category:

Additional information

Connection Type

Flanges acc. to DIN PN40/16

Material Body

Cast steel

Inner Parts

Stainless steel

Seat Sealing

Metallic

Temperature Range

-50°C to 450°C

Application Range

Cold water, Lubrication oil, Neutral gases, Petrol/Fuel Oil, Steam, Warm water

  • Type approval
  • Enlarged outlet
  • Closed bonnet
  • Gastight cap
Art. Nr. DN PN L H ØD kg
05-031GHGD-15/25 G15/25 PN40 80/90 260 95 7.00
05-031GHGD-20/32 G20/32 PN40 85/95 270 105 8.50
05-031GHGD-25/40 G25/40 PN40 100/105 280 115 10.00
05-031GHGD-32/50 G32/50 PN40 110/115 330 140 14.00
05-031GHGD-40/65 G40/65 PN40 115/140 390 150 20.00
05-031GHGD-50/80 G50/80 PN40 120/150 435 165 28.00
05-031GHGD-65/100 G65/100 PN40 140/170 545 185 40.00
05-031GHGD-80/125 G80/125 PN40 160/195 610 200 53.00
05-031GHGD-100/150 G100/150 PN40 180/220 690 235 80.00
05-031GHGD-125/200 G125/200 PN40 200/250 845 270 125.00
05-031GHGD-150/250 G150/250 PN40 225/285 890 300 165.00
