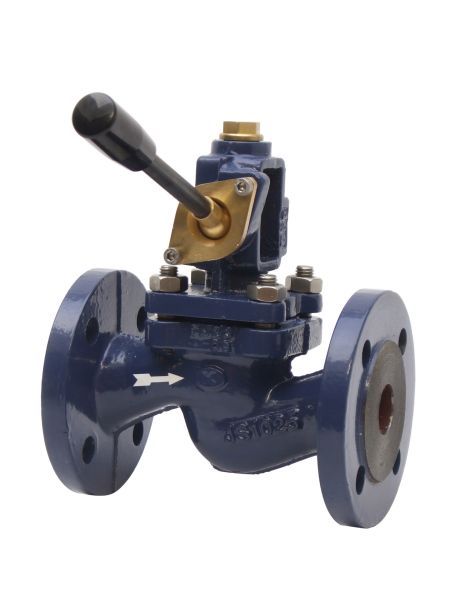

Flanged Self Closing Valve , 01-760OH-G
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 140°C |
- Spring loaded
- Hand lever
- Without additional shut-off
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-760OH-G-15 | DN15 | PN16 | 130 | 120 | 95 | 3.90 |
| 01-760OH-G-20 | DN20 | PN16 | 150 | 120 | 105 | 4.60 |
| 01-760OH-G-25 | DN25 | PN16 | 160 | 130 | 115 | 5.40 |
| 01-760OH-G-32 | DN32 | PN16 | 180 | 140 | 140 | 7.10 |
| 01-760OH-G-40 | DN40 | PN16 | 200 | 150 | 150 | 9.60 |
| 01-760OH-G-50 | DN50 | PN16 | 230 | 160 | 165 | 12.50 |
| 01-760OH-G-65 | DN65 | PN16 | 290 | 180 | 185 | 17.60 |
