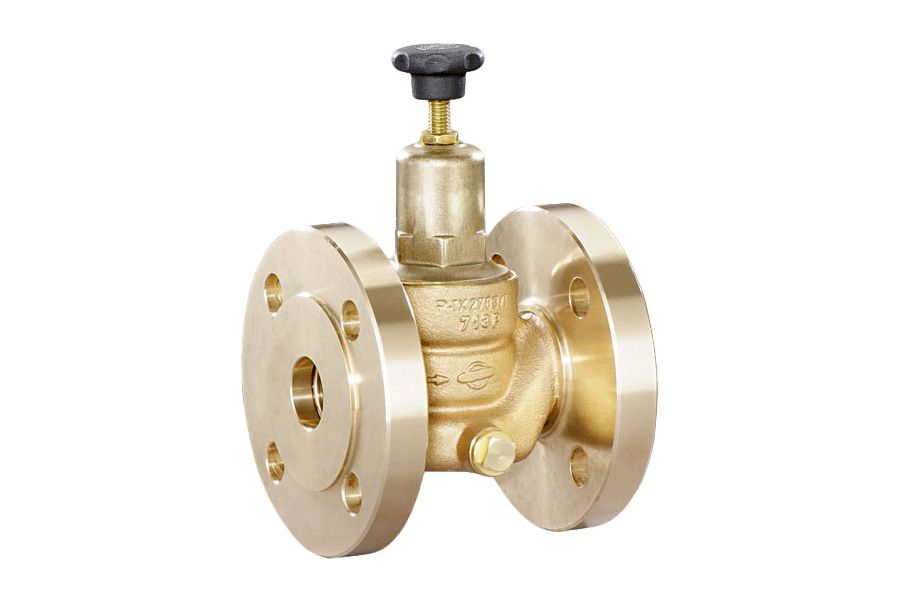

Flanged Pressure Reducing Valve, 05-050-DRV502

SKU: 05-050-DRV502 Category:

Additional information

Connection Type

Flanges acc. to DIN PN25

Material Body


Inner Parts


Seat Sealing


Temperature Range

0°C to 75°C

  • Balanced single seat diaphragm valve
  • For neutral gases and liquids
  • Strainer material stainless steel
  • Both sides pressure gauge connection G 1/4
  • Inl. press. max. 25 bar
  • Outlet pressure 1,5-6 bar
Art. Nr. DN PN kg
05-050-DRV502-15 DN15 PN25 2.37
05-050-DRV502-20 DN20 PN25 3.13
05-050-DRV502-25 DN25 PN25 4.12
05-050-DRV502-32 DN32 PN25 5.84
05-050-DRV502-40 DN40 PN25 8.63
05-050-DRV502-50 DN50 PN25 11.29
05-050-DRV502-65 DN65 PN25 17.94
05-050-DRV502-80 DN80 PN25 20.34
