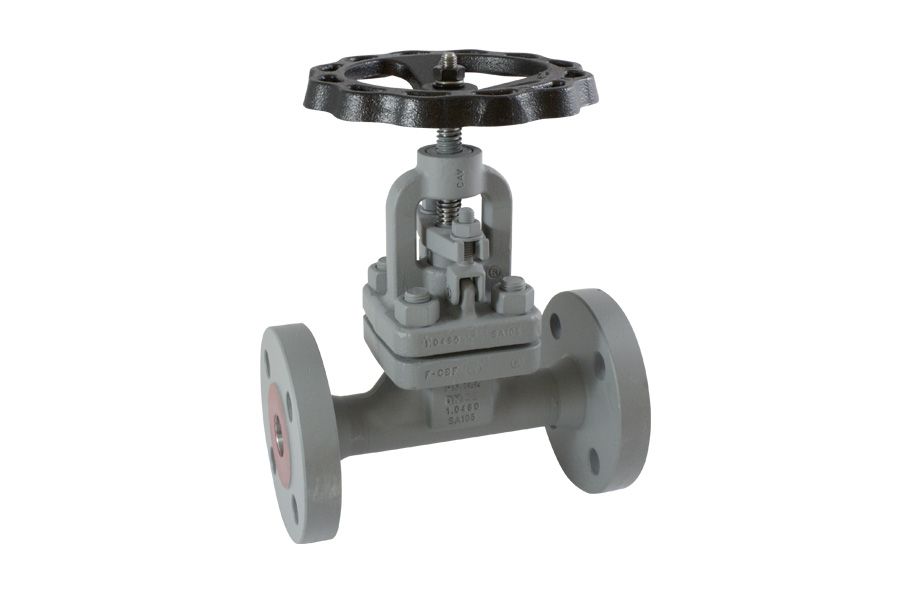

Flanged Globe Valve, 01-430PN160
Additional information
| Connection Type | Flanges acc. to DIN PN160 |
|---|---|
| Material Body | Forged steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 450°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-430PN160-15 | DN10 | PN160 | 210 | 228 | 180 | 8.70 |
| 01-430PN160-20 | DN15 | PN160 | 210 | 228 | 180 | 8.60 |
| 01-430PN160-25 | DN20 | PN160 | 230 | 228 | 180 | 10.40 |
| 01-430PN160-32 | DN25 | PN160 | 230 | 228 | 180 | 10.90 |
| 01-430PN160-40 | DN32 | PN160 | 260 | 292 | 225 | 19.00 |
| 01-430PN160-50-160-260 | DN40 | PN160 | 260 | 292 | 225 | 21.00 |
| 01-430PN160-50-063 | DN50 | PN063 | 300 | 300 | 225 | 26.00 |
| 01-430PN160-50-160-300 | DN50 | PN160 | 300 | 300 | 225 | 27.00 |
