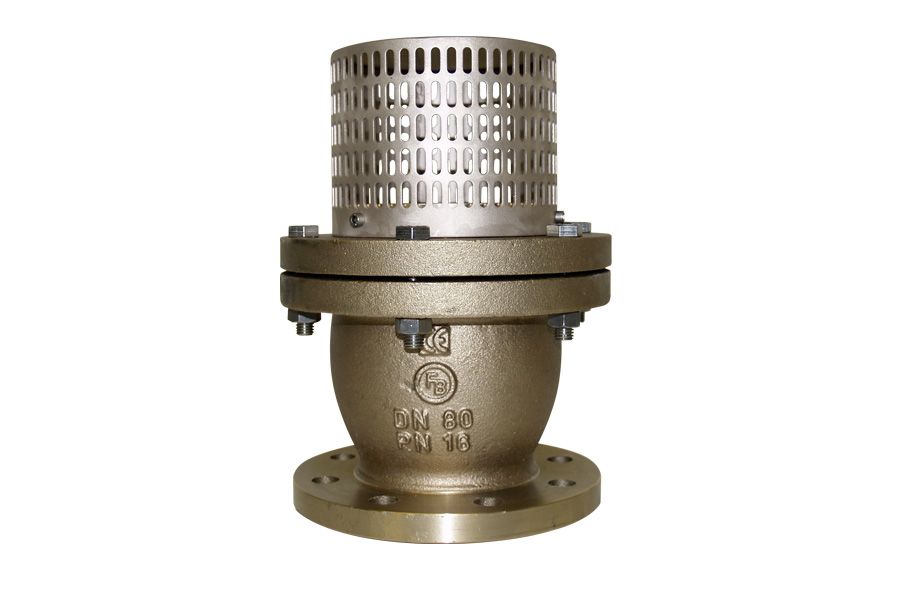

Flanged Foot Valve, 01-656RG5
Additional information
| Connection Type | Flanges acc. to DIN PN10 |
|---|---|
| Material Body | Bronze |
| Inner Parts | Bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 120°C |
- Copper nickel strainer
- Non return function
- Soft sealed
| Art. Nr. | DN | PN | H | ØD | kg |
| 01-656RG5-32 | DN32 | PN16 | 165 | 160 | 8.00 |
| 01-656RG5-40 | DN40 | PN16 | 180 | 160 | 10.00 |
| 01-656RG5-50 | DN50 | PN16 | 195 | 160 | 14.00 |
| 01-656RG5-65 | DN65 | PN16 | 215 | 180 | 19.00 |
| 01-656RG5-80 | DN80 | PN16 | 265 | 210 | 28.00 |
| 01-656RG5-100 | DN100 | PN16 | 315 | 235 | 35.00 |
| 01-656RG5-125 | DN125 | PN16 | 365 | 260 | 53.00 |
| 01-656RG5-150 | DN150 | PN16 | 430 | 313 | 65.00 |
| 01-656RG5-200 | DN200 | PN16 | 530 | 351 | 108.00 |
| 01-656RG5-250 | DN250 | PN16 | 650 | 395 | 138.00 |
| 01-656RG5-300 | DN300 | PN16 | 745 | 505 | 247.00 |
