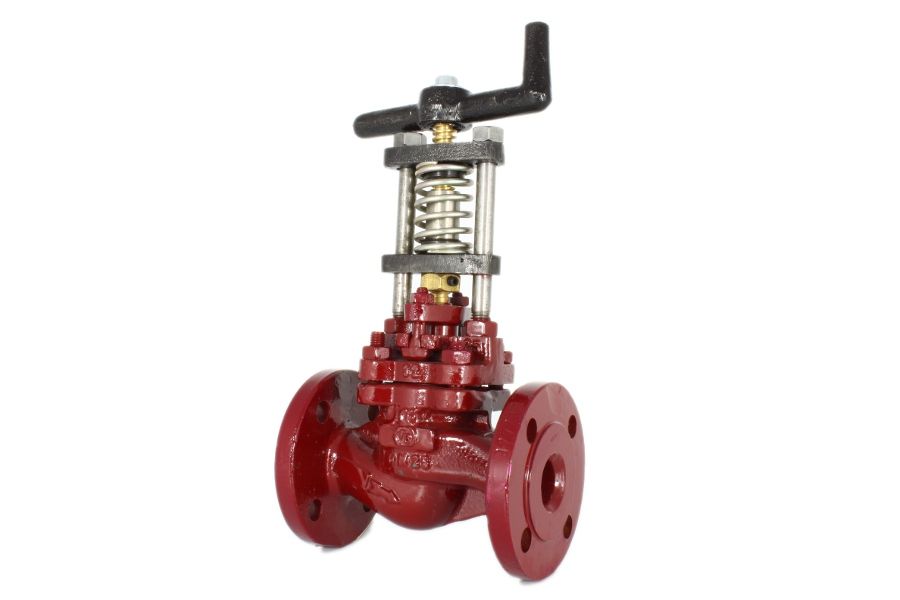

Flanged Discharge Valve, 01-511
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- External spring adjustable 0,1 – 0,5 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-511-15 | DN15 | PN16 | 130 | 270 | 95 | 7.00 |
| 01-511-20 | DN20 | PN16 | 150 | 270 | 105 | 7.00 |
| 01-511-25 | DN25 | PN16 | 160 | 285 | 115 | 8.00 |
| 01-511-32 | DN32 | PN16 | 180 | 310 | 140 | 9.00 |
| 01-511-40 | DN40 | PN16 | 200 | 340 | 150 | 11.00 |
| 01-511-50 | DN50 | PN16 | 230 | 395 | 165 | 15.00 |
| 01-511-65 | DN65 | PN16 | 290 | 435 | 185 | 19.00 |
| 01-511-80 | DN80 | PN16 | 310 | 480 | 200 | 32.00 |
| 01-511-100 | DN100 | PN16 | 350 | 510 | 220 | 42.00 |
| 01-511-125 | DN125 | PN16 | 400 | 600 | 250 | 60.00 |
| 01-511-150 | DN150 | PN16 | 480 | 600 | 285 | 85.00 |
| 01-511-200 | DN200 | PN16 | 600 | 835 | 340 | 140.00 |
| 01-511-250 | DN250 | PN16 | 730 | 1030 | 395 | 250.00 |
| 01-511-300 | DN300 | PN16 | 850 | 1065 | 445 | 360.00 |
