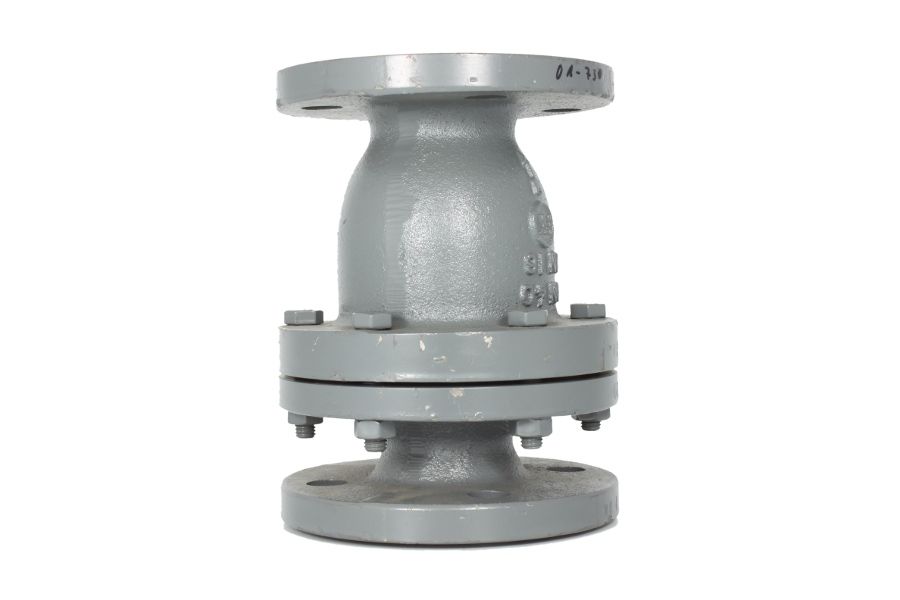

Flanged Ball Check Valve, 01-730
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Rubber |
| Temperature Range | 0°C to 130°C |
- Part design
- Rubber valve seat ball
- Ball non-floatable
| Art. Nr. | DN | PN | L | ØD | Kg |
| 01-730-15 | DN15 | PN16 | 150 | 95 | 4.50 |
| 01-730-20 | DN20 | PN16 | 150 | 105 | 5.40 |
| 01-730-25 | DN25 | PN16 | 160 | 115 | 6.30 |
| 01-730-32 | DN32 | PN16 | 180 | 140 | 9.00 |
| 01-730-40 | DN40 | PN16 | 200 | 150 | 10.00 |
| 01-730-50 | DN50 | PN16 | 230 | 165 | 13.50 |
| 01-730-65 | DN65 | PN16 | 290 | 185 | 19.50 |
| 01-730-80 | DN80 | PN16 | 310 | 200 | 22.00 |
| 01-730-100 | DN100 | PN16 | 350 | 220 | 32.00 |
| 01-730-125 | DN125 | PN16 | 400 | 250 | 40.00 |
| 01-730-150 | DN150 | PN16 | 480 | 285 | 54.00 |
| 01-730-200 | DN200 | PN16 | 600 | 340 | 128.00 |
