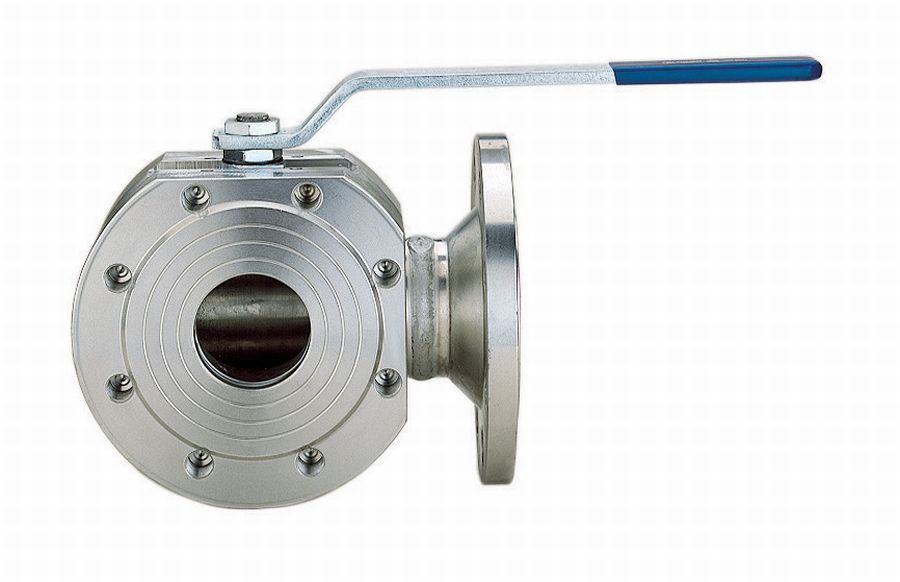

Flanged 3-way Compact Ball Valve, 03-813

SKU: 03-813 Category:

Additional information

Connection Type

Flanges acc. to DIN EN 1092 PN16, Top flange acc. to ISO 5211

Material Body

Stainless steel

Inner Parts

Stainless steel

Seat Sealing

PTFE

Temperature Range

-20°C to 200°C

  • Reduced bore
  • T-port
Art. Nr. DN PN L H ØD kg
03-813-15 DN15 PN16 40 47 95 2.23
03-813-20 DN20 PN16 40 49,5 105 2.86
03-813-25 DN25 PN16 46 59 115 3.89
03-813-32 DN32 PN16 58 64 140 6.21
03-813-40 DN40 PN16 71 78 150 8.50
03-813-50 DN50 PN16 82 85 165 12.27
03-813-65 DN65 PN16 106 104,5 185 19.10
03-813-80 DN80 PN16 122 113 200 24.34
03-813-100 DN100 PN16 152 136 220 38.45
