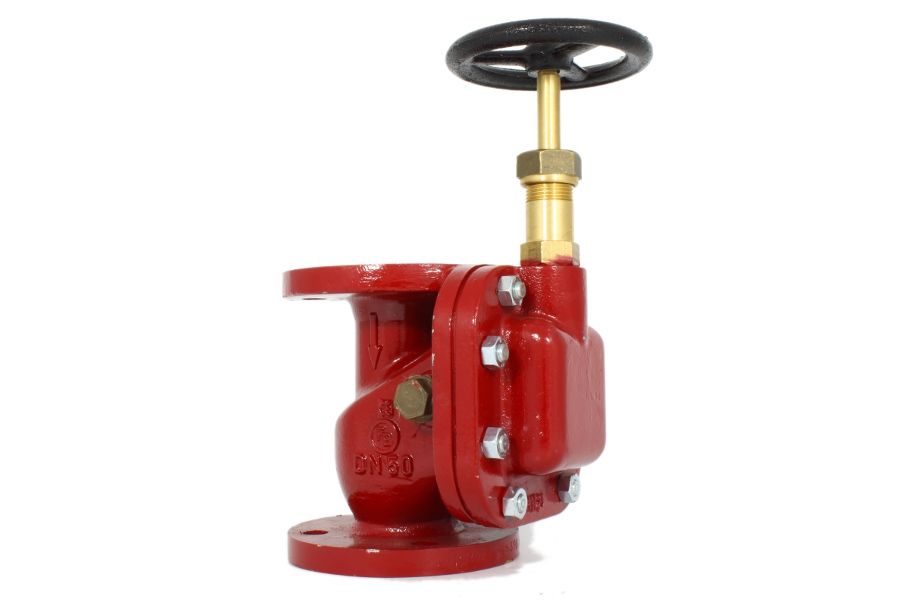

flange storm valve , 04-004.1
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Cold water, Seawater, Warm water |
- Locking device
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-004.1-50 | DN50 | 137 | 165 | 15.00 | |
| 04-004.1-65 | DN65 | 148 | 185 | 23.00 | |
| 04-004.1-80 | DN80 | 174 | 200 | 35.00 | |
| 04-004.1-100 | DN100 | 195 | 220 | 43.00 | |
| 04-004.1-125 | DN125 | 216 | 250 | 74.00 | |
| 04-004.1-150 | DN150 | 242 | 285 | 85.00 | |
| 04-004.1-200 | DN200 | 300 | 340 | 115.00 |
