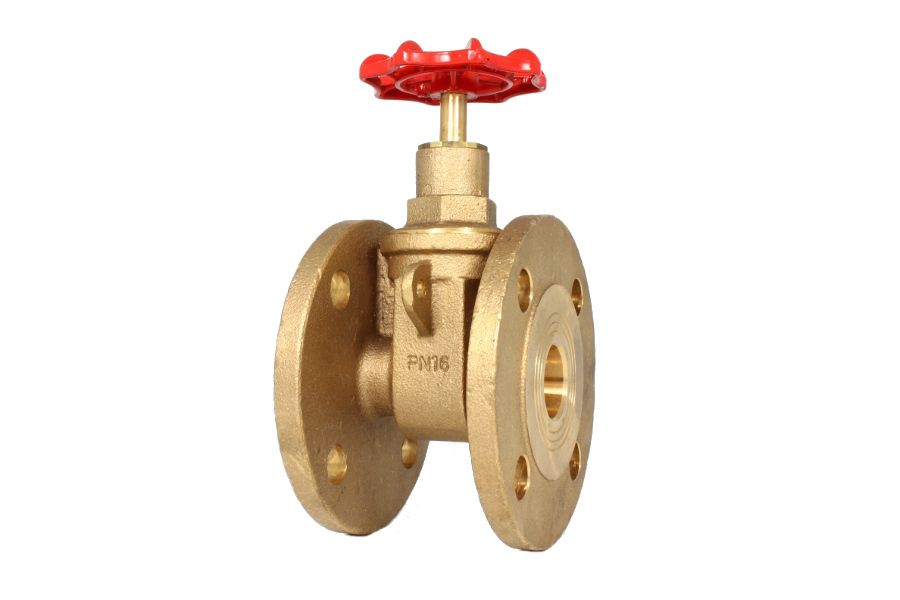

Flange gate valve (shipbuilding type), 02-011
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN16 |
|---|---|
| Material Body | Gunmetal (2.1096/CC491K) |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 120°C |
- Screwed and secured bonnet
- Non-rising stem, gland packing
- (Substitute for DIN 3352 Part 11)
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 02-011-15 | DN15 | PN16 | 60 | 85 | 95 | 1.40 |
| 02-011-20 | DN20 | PN16 | 75 | 100 | 105 | 1.80 |
| 02-011-25 | DN25 | PN16 | 80 | 115 | 115 | 2.30 |
| 02-011-32 | DN32 | PN16 | 90 | 130 | 140 | 3.60 |
| 02-011-40 | DN40 | PN16 | 100 | 150 | 150 | 4.60 |
| 02-011-50 | DN50 | PN16 | 110 | 180 | 165 | 6.40 |
| 02-011-65 | DN65 | PN16 | 130 | 215 | 185 | 9.40 |
| 02-011-80 | DN80 | PN16 | 150 | 250 | 200 | 12.00 |
| 02-011-100 | DN100 | PN16 | 160 | 315 | 220 | 19.00 |
