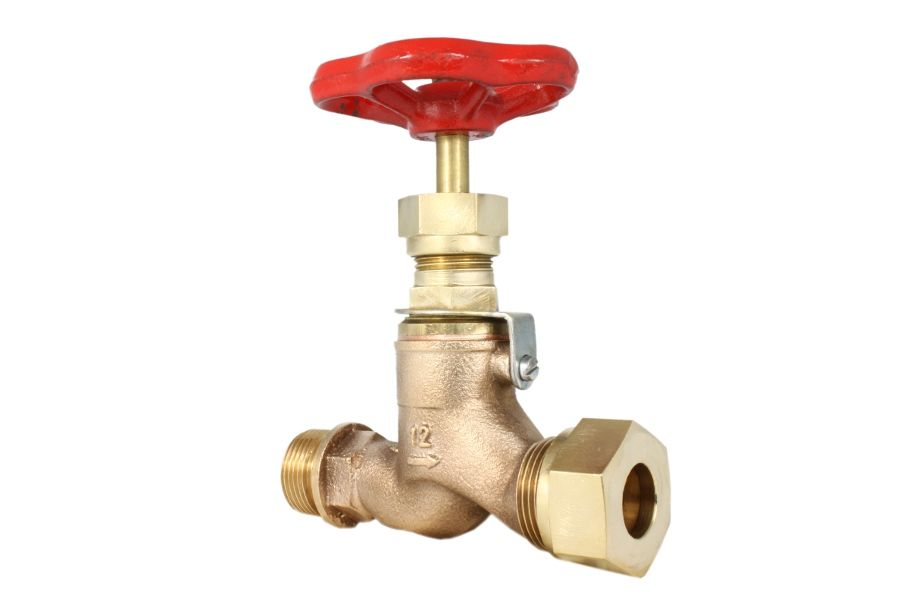

Check Valve Screwed Ends, 01-092
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Screwed secured bonnet
- SDNR-plug
- Inlet male thread
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-092-6 | DN6 | PN40 | 67 | 110 | 60 | 0.50 |
| 01-092-8 | DN8 | PN40 | 71 | 110 | 60 | 0.50 |
| 01-092-10 | DN10 | PN40 | 78 | 110 | 60 | 0.50 |
| 01-092-12 | DN12 | PN40 | 93 | 130 | 80 | 1.00 |
| 01-092-16 | DN16 | PN40 | 100 | 130 | 80 | 1.10 |
| 01-092-20 | DN20 | PN40 | 121 | 150 | 100 | 1.70 |
| 01-092-25 | DN25 | PN40 | 132 | 150 | 100 | 1.90 |
| 01-092-32 | DN32 | PN40 | 154 | 180 | 120 | 3.00 |
