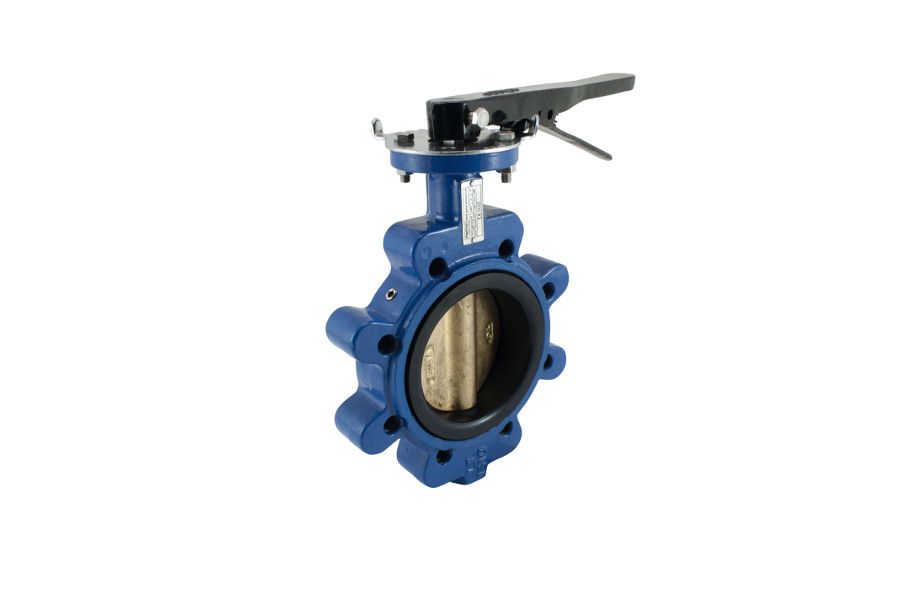

Butterfly Valve Lug Type, 04-022NA150KC
Additional information
| Connection Type | Flanges acc. to ANSI 150 |
|---|---|
| Material Body | Nodular cast iron GGG40 |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-022NA150KC-40 | DN40 | ANSI 150 | ||||
| 04-022NA150KC-50 | DN50 | ANSI 150 | 261,5 | 204 | 90 | 4.20 |
| 04-022NA150KC-65 | DN65 | ANSI 150 | 261,5 | 223 | 90 | 4.80 |
| 04-022NA150KC-80 | DN80 | ANSI 150 | 261,5 | 236 | 90 | 5.10 |
| 04-022NA150KC-100 | DN100 | ANSI 150 | 261,5 | 270 | 90 | 7.10 |
| 04-022NA150KC-125 | DN125 | ANSI 150 | 261,5 | 295 | 90 | 10.00 |
| 04-022NA150KC-150 | DN150 | ANSI 150 | 261,5 | 324 | 90 | 10.60 |
| 04-022NA150KC-200 | DN200 | ANSI 150 | 364 | 388 | 125 | 19.20 |
| 04-022NA150KC-250 | DN250 | ANSI 150 | 364 | 464 | 125 | 29.20 |
| 04-022NA150KC-300 | DN300 | ANSI 150 | 364 | 538 | 150 | 44.80 |
