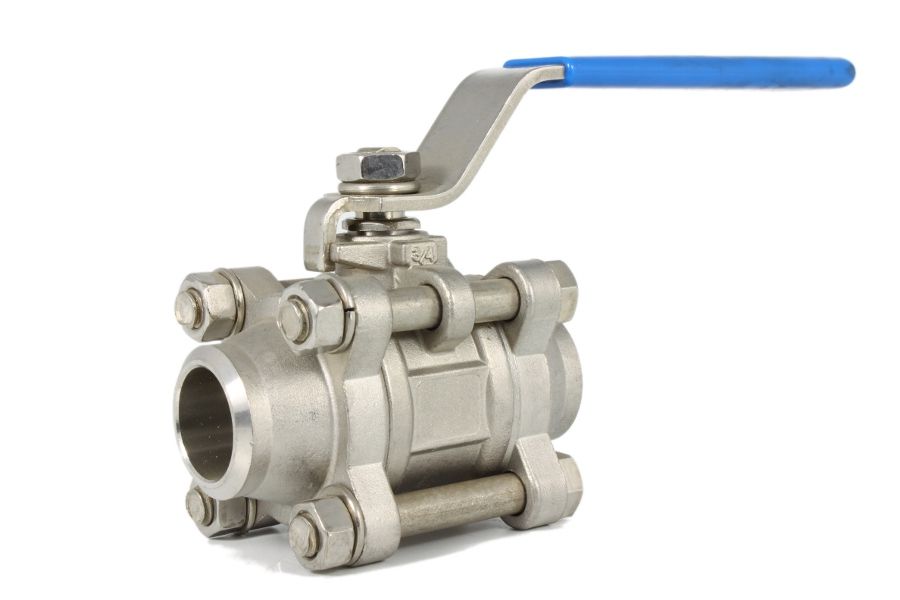

Ball Valve Welding Ends, 03-126.5
Additional information
| Material Body | Stainless steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Full bore
- Tri-partite body
- Blow-out proof stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-126.5-1/4 | G1/4 | PN63 | 64,5 | 54 | 8 | 0.41 |
| 03-126.5-3/8 | G3/8 | PN63 | 64,5 | 54 | 12,7 | 0.41 |
| 03-126.5-1/2 | G1/2 | PN63 | 66 | 57 | 15 | 0.52 |
| 03-126.5-3/4 | G3/4 | PN63 | 82,6 | 66 | 20 | 0.71 |
| 03-126.5-1 | G1 | PN63 | 95 | 76 | 25 | 1.08 |
| 03-126.5-11/4 | G1-1/4 | PN63 | 111,2 | 81 | 32 | 1.71 |
| 03-126.5-11/2 | G1-1/2 | PN63 | 130,6 | 96 | 38 | 2.35 |
| 03-126.5-2 | G2 | PN63 | 151 | 106 | 50 | 3.55 |
| 03-126.5-21/2 | G2-1/2 | PN63 | 165 | 138 | 65 | 8.90 |
| 03-126.5-3 | G3 | PN63 | 212 | 154 | 80 | 14.30 |
| 03-126.5-4 | G4 | PN63 | 235 | 178 | 100 | 23.40 |
